JACKS AND PLUGS
RIGHT ANGLE MINIATURE POWER JACKS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

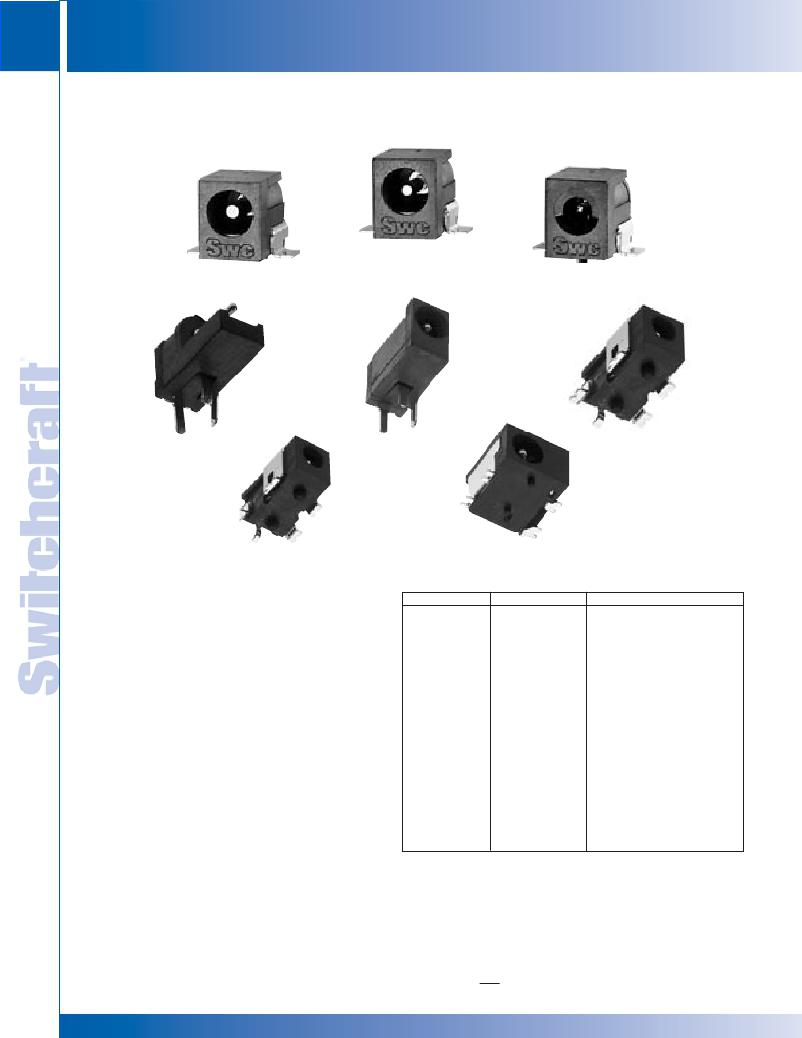

RIGHT ANGLE MINIATURE POWER JACKS
RASM 722
RASM 712
RASM 732P
RAPC732OF
RAPC742
RASM752TR
RASM752STR
RASM742TR
SPECIFICATIONS:
Materials: Housing: Thermoplastic
Terminals:
RAPC700:
Sleeve: Silver plated copper alloy
Tip: Nickel plated, copper alloy
RAPC742, RASM742TR, RAPC732OF, RAPC742OF,
RAPC752, RAPC752S, RASM752TR, RASM752STR:
Sleeve and tip: Silver plated tin
Shunt: Silver plated copper alloy
RASM700, RASH700:
Sleeve: Tin plated copper alloy
Tip: Nickel plated copper alloy)
ELECTRICAL
Current Rating: 3A
(RAPC700, RASH700, RASM700: 5A)
Contact Resistance: <50 mohms
Insulation Resistance: 100 mohms min.
Part Number
RAPC712
RASH712
RASM712
RAPC722
RASH722
RASM722
RAPC732
RAPC732OF
RASH732
RASM732
RAPC742
RAPC742OF
RASM742TR
RAPC752
RAPC752S
RASM752TR
RASM752STR
Pin Size*
0.100"/2.5mm
0.100"/2.5mm
0.100"/2.5mm
0.080"/2.0mm
0.080"/2.0mm
0.080"/2.0mm
0.050"/1.3mm
0.050"/1.3mm
0.050"/1.3mm
0.050"/1.3mm
0.040"/1.0mm
0.040"/1.0mm
0.040"/1.0mm
0.025"/0.65mm
0.025"/0.65mm
0.025"/0.65mm
0.025"/0.65mm
Description
Right Angle, PC mount
Right Angle, hybrid mount
Right Angle, SMT mount
Right Angle, PC mount
Right Angle, hybrid mount
Right Angle, SMT mount
Right Angle, PC mount
Right Angle, PC mount 1
Right Angle, SMT mount
Right Angle, hybrid mount
Right Angle, PC mount
Right Angle, PC mount 1
Right Angle, SMT mount 2
Right Angle, PC mount
Right Angle, PC mount 3
Right Angle, SMT mount 2
Right Angle, SMT mount 4
(RAPC700, RASH700, RASM700: 30 megohms
@100V DC)
Dielectric Withstanding Voltage: 250 VAC@ 1 minute
MECHANICAL:
Lifecycles: 5,000 min.
Note: Contact factory for specific information on tape and reel options. *Pin Size
(in/mm) 1. Open Frame 2. Tape and Reel. 3. Shielded 4. Tape and Reel, Shielded.
Note: Available with P locating post as an option.
Note: Available with tin-plating as a special order.
Note: Available with Hi-temp material, contact factory for details.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
